Gazfull CNC Machining Equipments

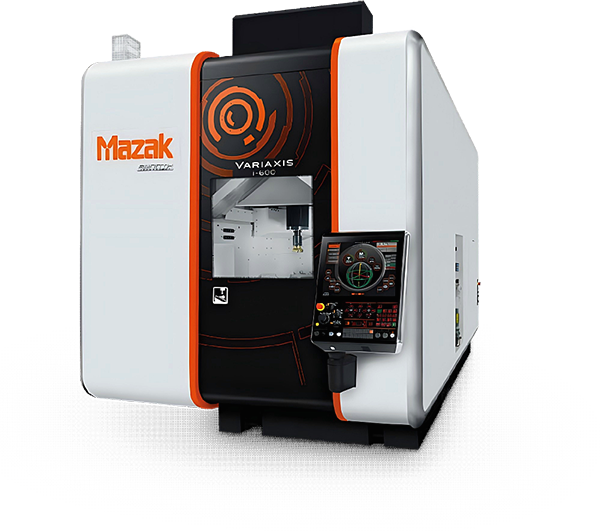

The VARIAXIS i-600
The VARIAXIS i-600 is a highly versatile full, simultaneous 5-axis Vertical Machining Center that performs multiple and complex curved surface machining on small and medium-sized workpieces in single setups.Incorporating all processes from raw material input through final machining in just one machine. As such, the machine reduces production lead times, improves machining accuracy and lowers operating expenses.The machine also offers high levels of productivity via extremely fast, high-rigidity spindles that can handle a wide variety of aluminum and other nonferrous material.Optional two-pallet changer provides continuous machine operation and integration within a PALLETECH Manufacturing System for automated manufacturing.
Feed Axes:
*Travel (X Axis): 20.08 in / 510 mm
*Travel (Y Axis): 35.83 in / 910 mm
*Travel (Z Axis): 20.08 in / 510 mm
Maximum Speed: 18000 rpm
Number of Tools: 30

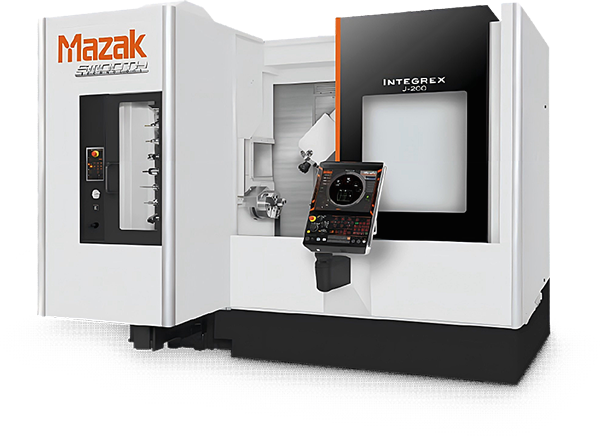

INTEGREX j-200
INTEGREX j-200 provides an option for increasing processing flexibility while offering a cost-effective alternative for accurate turning, and angular milling capability. In addition to automatic tool changing, a large machining area, and convenient operation fills the demand for a robust, multi-tasking machine to deliver on a wide variety of production requirements.
Maximum Machining Diameter: 19.690 in / 500 mm
Maximum Swing: 20.87 in / 530 mm
Feed Axes:
*Travel (X Axis): 17.72 in / 450 mm
*Travel (Y Axis): 7.87 in / 200 mm
*Travel (Z Axis): 21.65 in / 550 mm
*Travel (W Axis): 18.82 in / 478 mm
Main Spindle Maximum Speed: 5000 rpm
Milling Spindle Maximum Speed: 12000 rpm
Number of Tools: 36

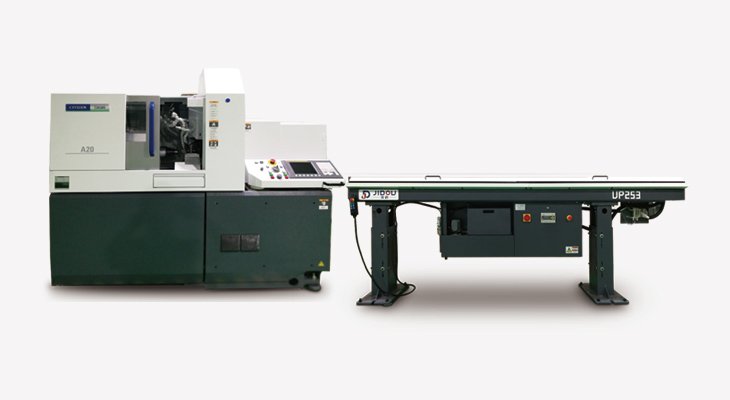

CITIZEN Cincom A20
Cincom A20 is a 5-axis machine. It can handle complicated processing and ensure tolerance requirement. It can change the mode with or without guide sleeve, which is the biggest feature for it. The maximum speed is high up to 10000min. When process complex product with long working hours, it can decrease number of times for fixture changed, to shorten cycle time and improve machining efficiency.

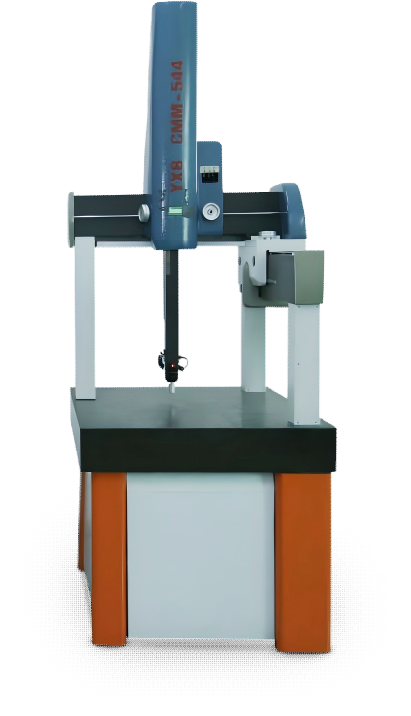

YXB CMM544
YXB CMM544 is a manual bridge CMM. Its three axes are surrounded flotation bearings. It has the features of strong applicability, high measurement accuracy, fast measuring speed and powerful functions, which can meet the needs of general production.

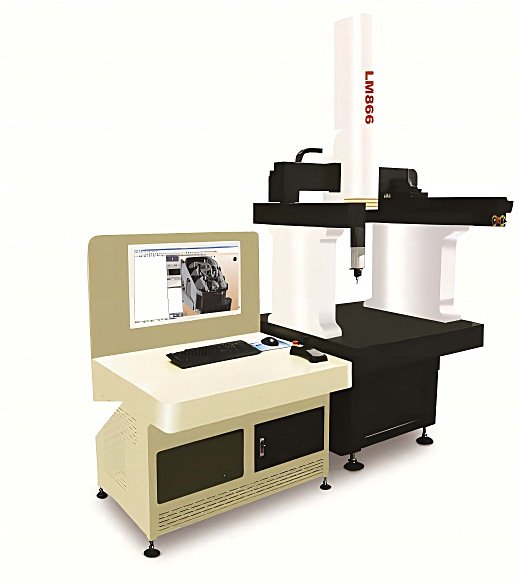

SHINREIN LM866
AUTO-CMM test machine. It uses method of finite element analysis for measurement, which makes its mechanical structure is rigid and geometric error is small. Its special feature likes two computers control upper and lower part, control layer and apply layer operates separately, make the CMM in high efficiency, high precision and high stability. It can meet the testing requirement for complex products.
Manufacturing Equipments list from Gazfull
Equipment | Brand | Specification | Qty | Actual Tolerance | Manufacturer standard Tolerance | |
CNC Machining Center | ||||||
| 1 | CNC machine center (5-axis linkage) | Mazak i-600 | Max:510*910*510mm | 1 | ±0.0025mm | ±0.001mm |
| 2 | CNC Lathe Turning Center (5- axis linkage) | Mazak j-200 | Max:450*200*550mm | 1 | ±0.0025mm | ±0.001mm |
| 3 | CNC machine center (5-axis) | Brother/Fanuc | Max:1100*600*500mm | 17 | ±0.005mm | ±0.001mm |
| 4 | CNC machine center | Brother | Max:1100*600*500mm | 20 | ±0.005mm | ±0.001mm |
| 5 | CNC machine center | Fanuc/Kira | Max:1100*600*500mm | 24 | ±0.005mm | ±0.001mm |
Others | ||||||
| 6 | CNC Lathe turn-mill combination | Samsung-PL25MC/1000 | XY:220*590mm，3500rpm | 1 | ±0.003mm | ±0.01mm |
| 7 | CNC Lathe turn-mill combination | Doosan-LYNX-220LM | XY:175*550mm,6000rpm | 1 | ±0.003mm | ±0.01mm |
| 8 | CNC Precision Automatic lathe | Citizen | Max:φ25mm*200mm | 6 | ±0.002mm | ±0.0025mm |
| 9 | CNC lathe | Samsung/Homemade | Max:φ350mm | 14 | ±0.003mm | ±0.005mm |
| 10 | Automatic lathe | Nanjing-CM1120 | Max:φ20.0mm | 8 | ±0.01mm | ±0.01mm |
| 11 | Universal lathe | C6240 | C6240 | 3 | ±0.01mm | ±0.01mm |
| 12 | NC miller | 2HG | Max:φ300X1000mm | 6 | ±0.01mm | ±0.01mm |
| 13 | Tapping machine | Xihu-SWJ-6 | Max:M6/M5 | 12 | ±0.05mm | 0.05mm |
| 14 | High speed driller | Xihu-Z4116 | Max:φ4.0mm | 5 | ±0.01mm | ±0.01mm |
| 15 | Sawing machine | 3050 | Max:φ300mm | 4 | 0.05mm | 0.05mm |
| 16 | Automatic knurling machine | NEX | Max 100x500mm | 1 | ||
| 17 | Ultrasonic | Homemade | 3 | |||
